LOA LINE ARRAY 210

 IWAC 210 line array


 System constitution:

The complete system should have IWAC210 line array speaker, flying frame, amplifier rack and the frame of amplifier rack.
The standard application is 3pcs IWAC210 cabinet match with 2pcs SUB115T each side. The V4.25 amp can drive IWAC210 and V2.20 amp drive SUB115T. It has fully integrated rigging, no tools are needed for building a complete setup.

The IWAC210 line array can be used for:

  • Medium to large PA reinforcements
  • Auditorium and theater
  • Indoor & outdoor festivals
  • Stadium

IWAC210 Fitting

Excellent sound performance:
IWAC210 line array speaker module adopts two way external crossover design, 1 x 10inch bass and 2 x 1.73inch HF drivers. It can output high SPL and Long distance sound diffusion with low distortion.

  • Completely using physical methods correct phase and frequency response.
    No need DSP electronic balance adjustment, can get very flat frequency response (80~18.5kHz);
  • Sound image in the front, positioning clear.
The rigging system:
IWAC210 line array module has a 1°/step rigging frame on the side and under a 12:1 safety factor can be used to rigging 12pcs line array module.

  • Scalable design for extension bar ,precise construction, easy to use,no noise,strong fault tolerance
The amplifier rack
IWAC210 line array has a 6U height power amplifier rack which can be hanging and put one Verity V4.25 amps and one DSP can drive 8pcs IWAC210 speakers.

  • In this way, we can shorten the speaker cable and make the operation more simpler and also can reduce the signal distortion.
  • Simpler system connection、lower cost、more reliable using experience.

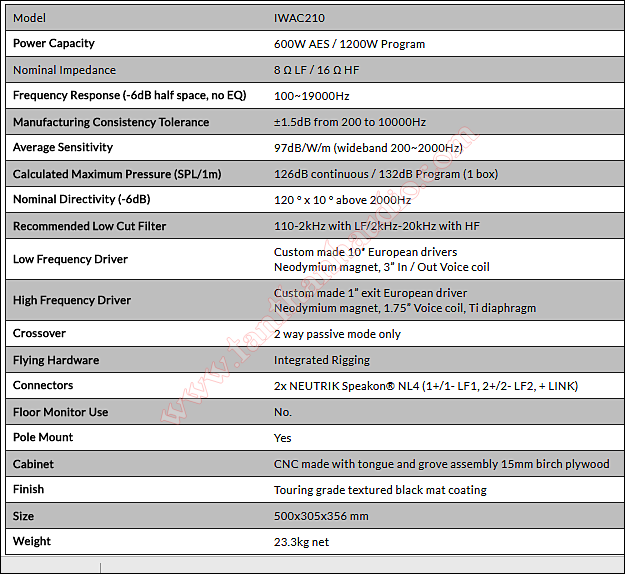

Thông số kỹ thuật
